介绍

Perfetto 是基于 Android 的系统追踪服务, Android的trace跟踪服务在 Android11(R) 之后是默认打开的,但是如果你是 Android 9 ( P ) 或者 10 ( Q ) ,那么就需要手动设置一下相应的 prop 属性。
adb shell setprop persist.traced.enable 1


使用 adb 抓取

adb shell perfetto -o /data/misc/perfetto-traces/trace_file.perfetto-trace -t 60s sched freq idle am wm gfx view binder_driver hal dalvik camera input res memory
-o /data/misc/perfetto-traces/trace_file.perfetto-trace 输出trace的路径
-t 60s 最多抓取时长,可以Ctrl+C停止
sched ... memory 要抓取相关模块
更多配置说明,参见文档:https://perfetto.dev/docs/concepts/config
使用配置文件,通过adb抓取,参考如下
adb push atrace.cfg /data/local/tmp/atrace.cfg
adb shell "cat /data/local/tmp/atrace.cfg | perfetto --txt -c - -o /data/misc/perfetto-traces/trace.perfetto-trace"
atrace.cfg 是配置信息,默认最多只抓取10秒,可以修改更长
可以Ctrl+C停止,需执行adb shell
再执行 cat /data/local/tmp/atrace.cfg | perfetto --txt -c - -o /data/misc/perfetto-traces/trace.perfetto-trace
更多配置参见 https://github.com/google/perfetto/blob/master/test/configs
然后 adb pull /data/misc/perfetto-traces/trace.perfetto-trace ,在 https://perfetto.dev/ 导入文件分析


通过 perfetto 网页抓取

打开 https://ui.perfetto.dev/#!/record
"Add ADB Device" 选择手机设备

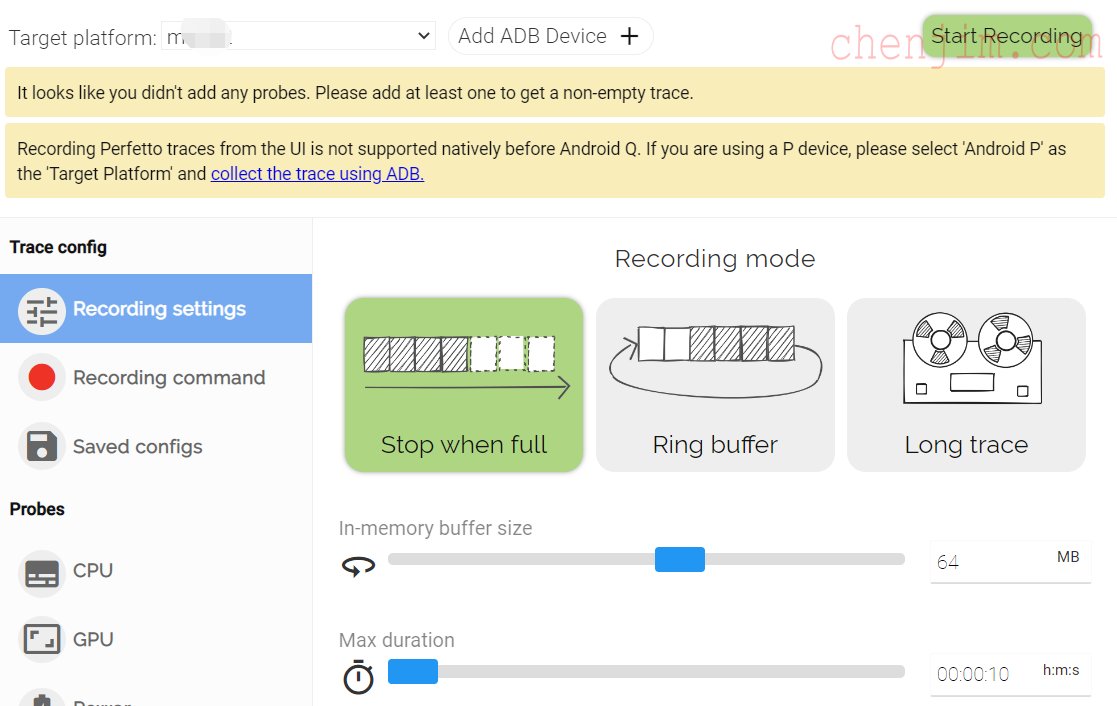

如下图,有一些参数配置,根据自己的需要添加修改

最后右上角 "Start Recording"


直接在手机上抓取

开启开发者模式:系统设置--关于手机--连续点击。部分机型可网上搜索开启方式。
进入开发者模式,选择"系统跟踪",里面有一些相关设置类别,可以选择要抓取的数据种类
抓取的trace信息会直接存储在手机 /data/local/traces,"查看跟踪文件",可以分享
此方式比较适合没有电脑,随时抓取


使用 record_android_trace 抓取

执行如下命令,会自动抓取,并打开 https://perfetto.dev/ 分析
python record_android_trace -c atrace.cfg -o out.perfetto.trace
record_android_trace 是 perfetto 中文件,具体参见以上命令的链接
atrace.cfg 是配置信息,更多配置说明参见文档:https://perfetto.dev/docs/concepts/config
默认只抓取10秒,可以修改更长,可以Ctrl+C停止,更多配置参见 https://github.com/google/perfetto/blob/master/test/configs
首次运行会从 googleapis.com 下载文件,如果遇到超时,可能需要修改如下
Windows可参考 Android基于perfetto分析native内存泄露 放文件

diff --git a/tools/heap_profile b/tools/heap_profile
@@ -243,8 +243,9 @@ def download_or_get_cached(file_name, url, sha256):
    if needs_download:
        # Either the filed doesn't exist or the SHA256 doesn't match.
        tmp_path = bin_path + '.tmp'
+    proxy_7890='http://127.0.0.1:7890'
        print('Downloading ' + url)
-    subprocess.check_call(['curl', '-f', '-L', '-#', '-o', tmp_path, url])
+    subprocess.check_call(['curl', '-f', '-L', '-#','-x',proxy_7890, '-o', tmp_path, url])
        with open(tmp_path, 'rb') as fd:
        actual_sha256 = hashlib.sha256(fd.read()).hexdigest()
        if actual_sha256 != sha256:

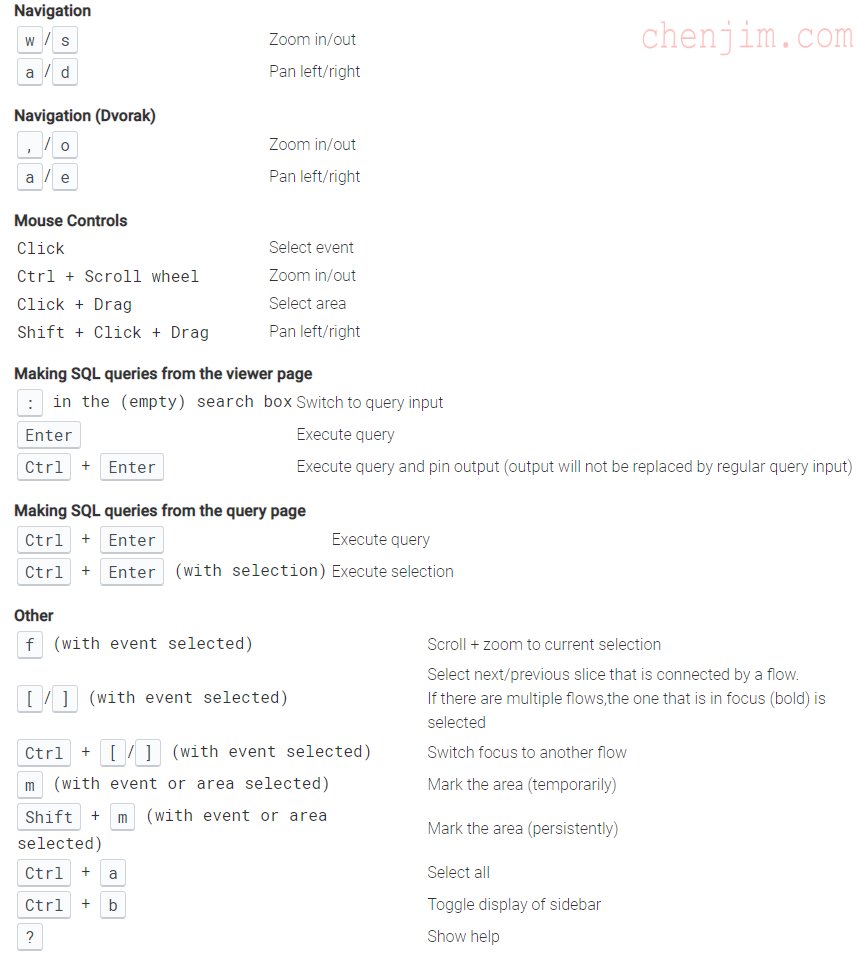

熟悉 perfetto 快捷键,会有事半功倍效果


注意事项

  • 最好先执行adb shell,然后执行perfetto相关命令,因为在某些情况 Ctrl+C不通过ADB传播而无法停止.
  • 在 Android 12 之前的非 root 设备上,由于过度限制的 SELinux 规则,配置只能通过 (cat config | adb shell perfetto -c -) 传递 。由于 Android 12 /data/misc/perfetto-configs可用于存储配置。
  • 在 Android 10 之前的设备上,adb 无法直接拉取 /data/misc/perfetto-traces. 可以用 adb shell cat /data/misc/perfetto-traces/trace > trace变通。
  • 当捕获较长的跟踪时,例如在基准测试或 CI 的上下文中,使用 PID=$(perfetto --background) 然后kill $PID停止。


  • 一个参考配置示例如下
    更多可参见 https://github.com/google/perfetto/blob/master/test/configs
      buffers: {
          size_kb: 707200
          fill_policy: RING_BUFFER
      }
      buffers: {
          size_kb: 707200
          fill_policy: RING_BUFFER
      }
      data_sources: {
          config {
              name: "linux.process_stats"
              target_buffer: 1
              process_stats_config {
                  scan_all_processes_on_start: true
                  proc_stats_poll_ms: 1000
              }
          }
      }
      data_sources: {
          config {
              name: "android.log"
              android_log_config {
              }
          }
      }
      data_sources: {
          config {
              name: "android.surfaceflinger.frametimeline"
          }
      }
      data_sources: {
          config {
              name: "linux.sys_stats"
              sys_stats_config {
                  meminfo_period_ms: 1000
                  vmstat_period_ms: 1000
                  stat_period_ms: 1000
                  stat_counters: STAT_CPU_TIMES
                  stat_counters: STAT_FORK_COUNT
              }
          }
      }
      data_sources: {
          config {
              name: "android.heapprofd"
              target_buffer: 0
              heapprofd_config {
                  sampling_interval_bytes: 4096
                  shmem_size_bytes: 8388608
                  block_client: true
              }
          }
      }
      data_sources: {
          config {
              name: "android.java_hprof"
              target_buffer: 0
              java_hprof_config {
              }
          }
      }
      data_sources: {
          config {
              name: "linux.ftrace"
              ftrace_config {
                  ftrace_events: "sched/sched_switch"
                  ftrace_events: "power/suspend_resume"
                  ftrace_events: "sched/sched_wakeup"
                  ftrace_events: "sched/sched_wakeup_new"
                  ftrace_events: "sched/sched_waking"
                  ftrace_events: "power/cpu_frequency"
                  ftrace_events: "power/cpu_idle"
                  ftrace_events: "sched/sched_process_exit"
                  ftrace_events: "sched/sched_process_free"
                  ftrace_events: "task/task_newtask"
                  ftrace_events: "task/task_rename"
                  ftrace_events: "lowmemorykiller/lowmemory_kill"
                  ftrace_events: "oom/oom_score_adj_update"
                  ftrace_events: "ftrace/print"
                  ftrace_events: "binder/*"
                  atrace_categories: "input"
                  atrace_categories: "gfx"
                  atrace_categories: "view"
                  atrace_categories: "webview"
                  atrace_categories: "camera"
                  atrace_categories: "dalvik"
                  atrace_categories: "power"
                  atrace_categories: "wm"
                  atrace_categories: "am"
                  atrace_categories: "ss"
                  atrace_categories: "sched"
                  atrace_categories: "freq"
                  atrace_categories: "binder_driver"
                  atrace_categories: "aidl"
                  atrace_categories: "binder_lock"
                  atrace_apps: "*"
              }
          }
      }
      duration_ms: 300000
      flush_period_ms: 30000
      incremental_state_config {
          clear_period_ms: 5000
      }
      write_into_file: true
